Off-Grid Water Systems: A Beginner's Guide to Getting Water Anywhere

Water & Land · 11 min read

Every off-grid water system, however simple or elaborate, does four things: collect, store, filter, and move. Get water from a source (rain, well, or spring), hold enough of it, clean it to the standard you need, and deliver it where it's used — ideally with gravity instead of a power bill. Nail those four stages and you have a supply that doesn't depend on the grid or the utility.

Stage 1: Collecting your water

Rainwater is the easiest place to start — a roof and gutters already collect it; you just route it into barrels or a tank. A 1,000 sq ft roof yields about 600 gallons per inch of rain. A well gives the most reliable supply where groundwater is good, drawn by hand pump, solar pump, or windmill. A spring, if you have one, is the homesteader's prize — gravity-fed, year-round, often needing only a catchment box.

Rainwater collection is restricted or regulated in a few areas — check your state and county rules before building a large system.

Stage 2: Storing enough

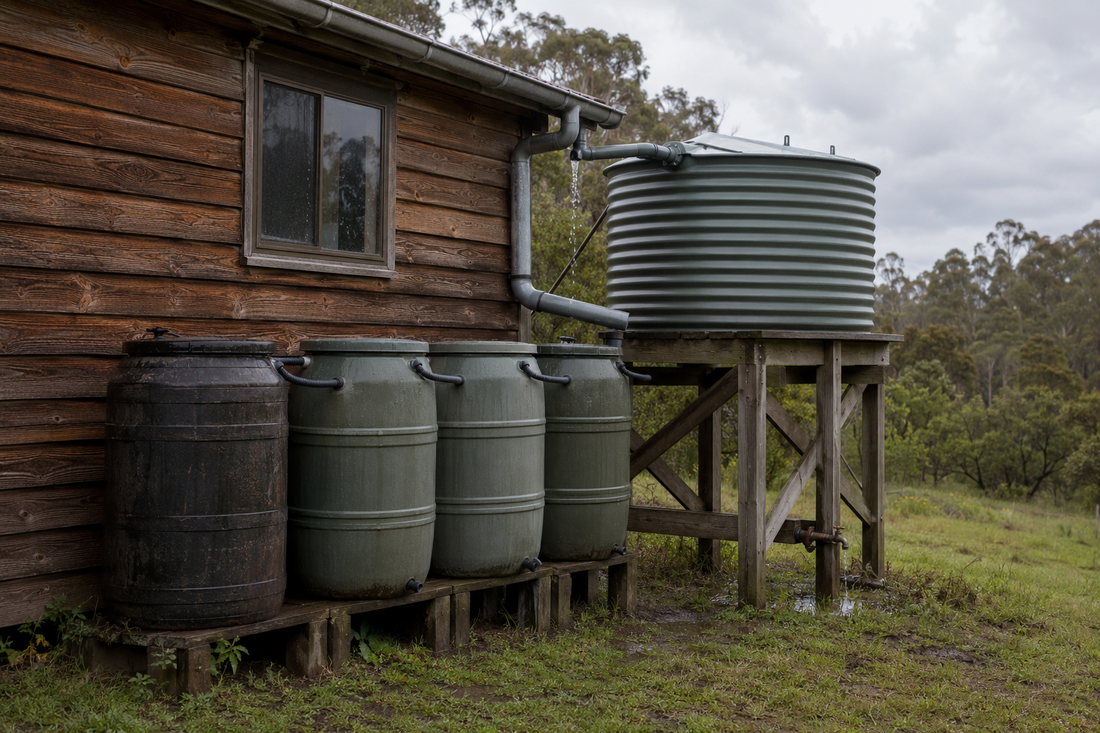

Storage is your buffer against dry spells and pump-free days. Options run from linked food-grade barrels (cheap, modular) to poly cisterns of several thousand gallons, to ferrocement or buried tanks for large or freeze-prone setups. Raise the tank if you can — every foot of height buys you gravity pressure and lets the system work when the power doesn't.

Stage 3: Filtering to the right standard

Match the treatment to the use. Garden and livestock water needs little more than screening out debris. Washing and bathing want sediment and carbon filtration. Drinking water needs the full chain: sediment filter, then carbon, then a purification step — a gravity-fed ceramic system, a UV unit, or boiling — to remove pathogens. Never assume rain or surface water is drinkable untreated; test it, then treat to the result.

Stage 4: Moving it without a power bill

The elegant off-grid answer is gravity: put the tank uphill or on a stand, and the house, garden, and troughs feed themselves. Where gravity won't reach, a solar pump moves water during daylight (often into an elevated tank, so you store pressure as height). A hand pump is the always-works backup every system should keep. A ram pump can lift spring or stream water uphill using only the flow's own energy — no power at all.

Putting it together

Most resilient homesteads don't pick one source — they layer them: rain catchment for the garden, a well or spring for the house, gravity storage for pressure, a hand pump for when all else fails. Start with the simplest stage you can build this season (usually rain barrels), then add storage, filtration, and delivery as you go. A modest system you finish beats a perfect one you never build.

Frequently asked questions

How much water does an off-grid homestead need?

Plan for roughly 50–100 gallons per person per day for comfortable living, though careful households use far less. Add garden and livestock needs separately, and size storage for your longest expected dry spell.

Is rainwater safe to drink?

Not without treatment. Rainwater picks up contaminants from the roof and air. For drinking, run it through sediment and carbon filters, then a purification step — ceramic, UV, or boiling. It's fine untreated for gardens and livestock.

How do you get water pressure off-grid?

Elevation. Raise the storage tank on a stand or hill and gravity provides steady pressure with no power. Roughly every 2.3 feet of height gives 1 psi. A solar or hand pump lifts water up to the tank.

What is the cheapest off-grid water system?

Rainwater harvesting into food-grade barrels off an existing roof and gutters is the cheapest start — often under $100. You expand into larger tanks, filtration, and pumps over time as budget allows.
